USB-C Pro Docking Station
CDS-15SSD: 15 Ports with SSD

Overview

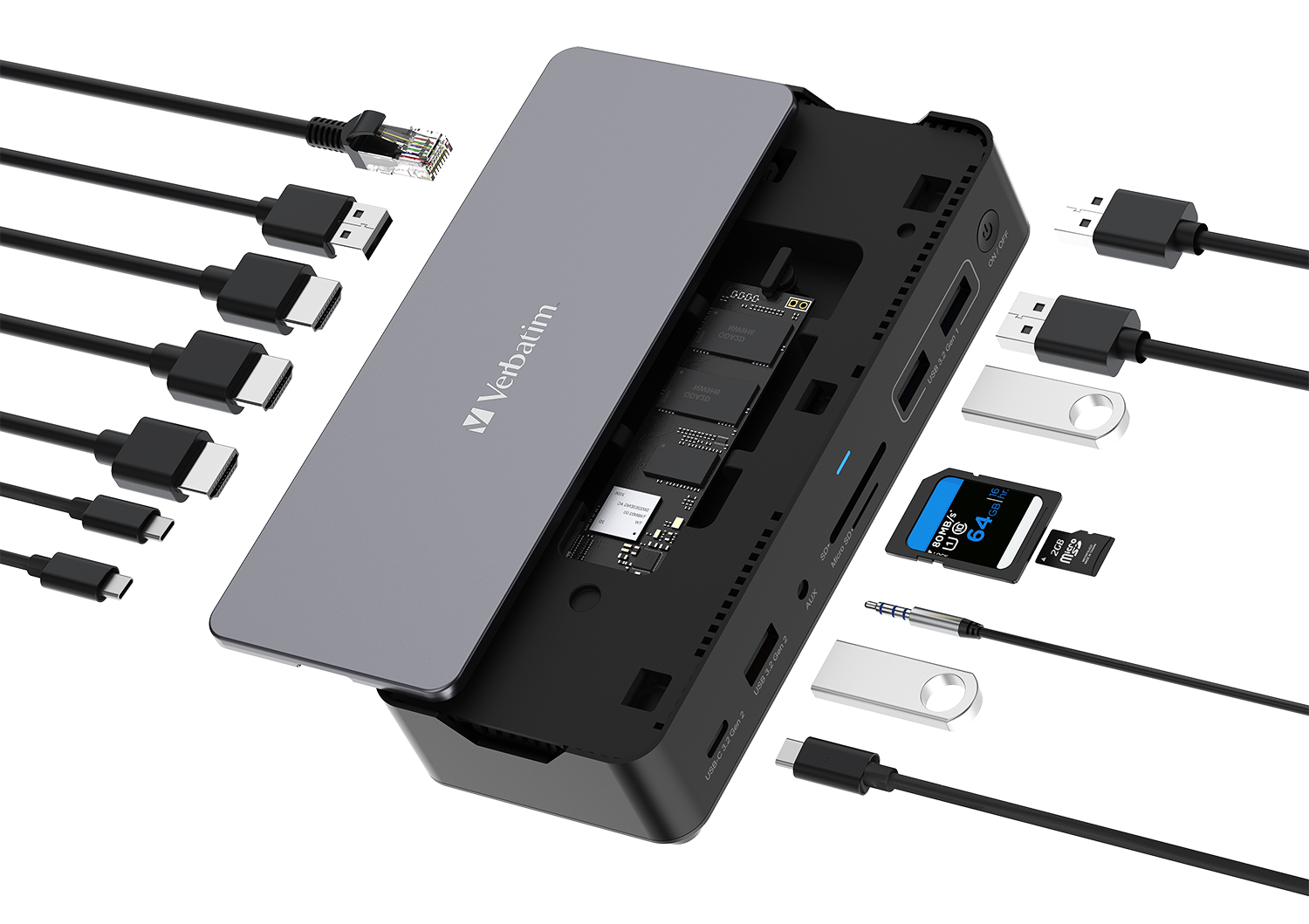

CDS-15SSD: 2 x HDMI | DP | RJ45 | USB-A 3.1 | 2 x USB-A 3.0 | USB-A 2.0 | 1 x USB-C® 3.1 | SD | microSD | Audio | SSD | USB-C PD | USB-C Host

Single-Cable Connection - Simplify your workspace, with a pre-installed 256GB SSD

Transform a single USB-C® port into fifteen versatile ports with the Verbatim USB-C Pro 15 Port Docking Station, now featuring a pre-installed Vi3000 256GB SSD. Instantly unlock rapid access to essential files and simplify automatic backups right out of the box.

Prepare for the future with 8K video output capability on a single screen or 4K resolution across triple displays. The docking station boasts a multitude of ports, including multiple USB-A ports of various generations, SD and microSD memory card slots, an audio jack, RJ45 and DisplayPort connections, USB-C ports, and a USB-C PD port for uninterrupted pass-through charging.

USB-C Pro Docking Station 15 Port with SSD Included CDS-15SSD

Upgrade your storage capabilities with a pre-installed 256GB SSD

The CDS-15S256 Pro Docking Station comes equipped with a pre-installed Verbatim Vi3000 256GB SSD, offering high-speed and ample storage for enhancing data management and accessibility. Easy to use, straight out of the box.

Up to 8K Ultra HD resolution

Unlock expansive display possibilities with the Pro Docking Station, featuring two HDMI ports and a DisplayPort that enable you to extend your display across three compatible TVs or monitors. Experience stunning visuals with support for 8K resolution at 30Hz on a single monitor using either the HDMI or DisplayPort, or achieve crisp 4K resolution across dual and triple monitors.

For HDMI output, the host USB-C port from your device must support video output.

Wired network connection

The Pro Docking Station is also equipped with a Gigabit Ethernet port (RJ45), providing an ideal solution for instances when the wireless connection proves inconsistent or unstable. Simply connect your laptop to the wired network by plugging in a Gigabit Ethernet cable, ensuring reliable and uninterrupted internet connectivity.

Enhanced Audio

Easily connect desktop speakers, headphones, or a microphone using the 3.5mm audio and microphone port. As laptops prioritize slim design, the headphone jack is often among the first features to be omitted. With our docking station, there's no need to seek alternative connections. Simply plug your devices into the docking station and enjoy uninterrupted sound effortlessly.

Four USB-A and a USB-C Port for all the accessories

The Docking Station is fully equipped with an array of USB ports to accommodate all your desktop accessory needs. Experience lightning-fast data transfer with the two USB-A 3.2 Gen2 and USB-C 3.2 Gen2 ports, supporting speeds of up to 10Gb/s. For devices requiring slightly slower speeds, the USB-A 3.2 Gen1 ports offer up to 5Gb/s. Additionally, a USB 2.0 port with speeds of 480Mb/s provides that extra port for devices not requiring superfast speeds.

USB-A ports will not support Apple SuperDrive / Nintendo Switch or charge iPads and other Tablets.

Easy Laptop Charging

The USB-C™ PD (Power Delivery) port ensures seamless pass-through charging. With this feature, the USB-C™ port on the Pro Docking Station facilitates charging directly from the power source, enabling the laptop to receive up to 100W of power while utilizing all other ports on the hub.

Memory Card Slots

The integrated SD and microSD memory card slots make it easy to access data from various memory cards.

Product Details

Part Number: 32174

  • Comprehensive Docking Solution: 15 ports including and M.2 SSD slot and SSD, high resolution HDMI and DisplayPort outputs

  • 2 x HDMI, 1 x DisplayPort, 1 x RJ45, 1 x USB-A 3.2 Gen2, 2 x USB-A 3.2 Gen1, 1 x USB-A 2.0, 1 x USB-C® 3.2 Gen2, 1 x SD card slot, 1 x microSD card slot, 1 x Audio, 1 x SSD slot and 256GB SSD, 1 x USB-C PD, 1 x USB-C Host port

  • Comes with a pre-installed 256GB PCIe 3.0 SSD, offering blazing-fast storage right out of the box for immediate use.

  • Enhanced Data Transfer Speed: USB 3.2 Gen 2 technology ensures rapid data transfer speeds

  • Prepare for the future with 8K video output capability. It supports a triple 4K Display.

  • Provides USB-C power charging - easily charge your USB-C device whilst still using other ports

  • Kensington security lock slot

  • 2-year limited warranty.

USB-C Pro Docking Station 15 Port with SSD Included CDS-15SSD

System Requirements

USB-C host port

Windows OS 11, 10
Mac OS 10.2 or above

Specifications

  • Interface: 2 x HDMI, up to 8K@30Hz, 1 x DisplayPort, up to 8K@30Hz, 1 x RJ45, up to 1Gb/s, 1 x USB-A 3.2 Gen2, up to 10Gb/s, 2 x USB-A 3.2 Gen1, up to 5Gb/s, 1 x USB-A 2.0, up to 480Mb/s, 1 x USB-C 3.2 Gen2, up to 10Gb/s, 1 x SD 4.0, 1 x microSD 3.0, 1 x Audio jack, 1 x SSD slot, NVMe 10G & SATA 5G plus 256GB SSD, 1 x USB-C PD, up to 100W, 1 x USB-C Host Port

  • Data Transfer Rate: up to 10Gbps

  • Memory Card Slots Transfer Rate: SD up to 250MB/s read and write, microSD up to 104MB/s read and 80MB/s write

  • HDMI Frequency: up to 8K/30Hz or 4K@120Hz

  • SSD: Verbatim Vi3000 PCIe NVMe M.2 2280 Internal SSD 256GB

  • Product Weight: 345 grams approx

  • Product Dimensions: 168mm x 68.5mm x 34mm (L x W x H)

  • Cable Length: 1m

  • Max. Current: USB output 5V/0.9A

  • Power Delivery: up to 100W

  • Operating Temperature: 0 - 40 °C

  • Storage Temperature: -20 - 85 °C

USB-C Pro Docking Station 15 Port with SSD Included CDS-15SSD

Pack Contents

USB-C Pro Docking Station 15 Port with 256GB SSD CDS-15SSD
USB-C to USB-C Cable
Quick Start Guide
